RG-NBS3100-48GT4SFP-P-V2, 48 Portlu Gigabit Katman 2 Bulut Yönetilen PoE Switch, 4 x 1G Uplinkler

Star Otel, Apartman, Kampüs, Perakende, CCTV vb.

Models
RG-NBS3100-8GT2SFP

8 Gigabit Portu, 2 SFP

 RG-NBS3100-8GT2SFP-P

8 Gigabit PoE Portu, 2 SFP, 125W

 RG-NBS3100-8GT2SFP-P-V2

8 Gigabit PoE+ Portu,2 SFP,125W

 RG-NBS3100-24GT4SFP

24 Gigabit Portu, 4 SFP

 RG-NBS3100-24GT4SFP-P

24 Gigabit PoE Portu,, 4 SFP, 370W

 RG-NBS3100-24GT4SFP-V2

24 Gigabit Portu, 4 SFP

 RG-NBS3100-24GT4SFP-P-V2

24 Gigabit PoE Portu,, 4 SFP, 370W

 RG-NBS3100-48GT4SFP-P

48 Gigabit PoE Portu,, 4 SFP, 370W

 RG-NBS3100-48GT4SFP-P-V2

48 x 10/100/1000BASE-T PoE+ Portları, 4 x 1GE SFP Portları, 370 W
Series
Sabit 10G Bağlantı Aktif Katman 2+ (L2+) Anahtarı Sabit 1G Bağlantı Aktif Katman 2 (L2) Anahtarı
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • 48 Portlu Gigabit Katman 2 Yönetilen PoE Switch, 4 SFP Uplinkleri
  • Kurumsal Sınıf Kalite ve Özellikleri, Olağanüstü Performans Sunar
  • Çoklu Güvenlik Politikaları Ağınızı Korur
  • IP Kamera Tanıma Özelliği Sayesinde CCTV Ağları için Benzersiz Çözüm
  • Her Zaman Her Yerde Ruijie Cloud üzerinden Ömür Boyu Ücretsiz Yönetim
Sales Enquiry
Özellikler

RG-NBS3100-48GT4SFP-P-V2

48 Portlu Gigabit Katman 2 Bulut Yönetilen PoE
Switch, 4 x SFP Uplinkleri

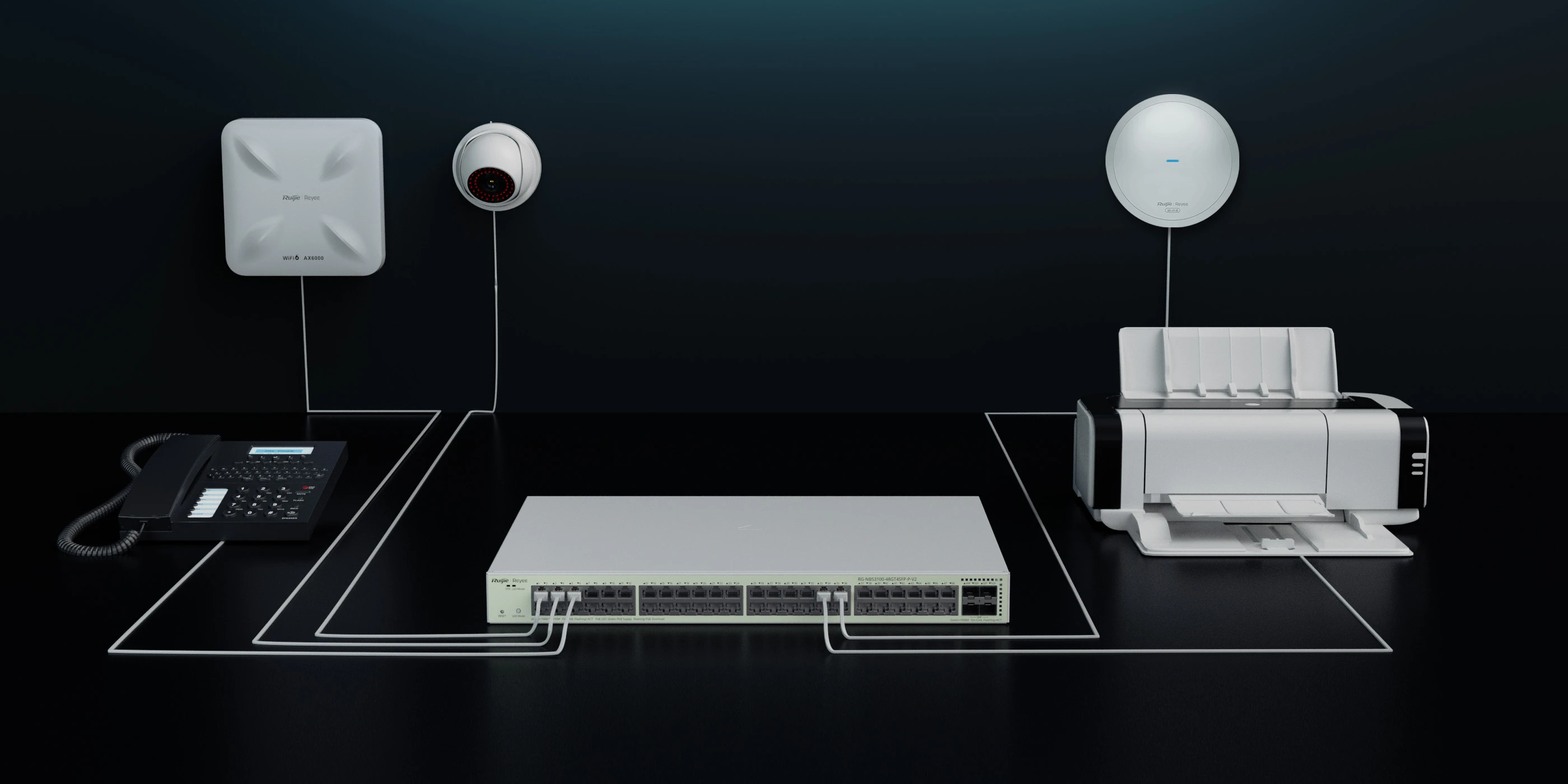

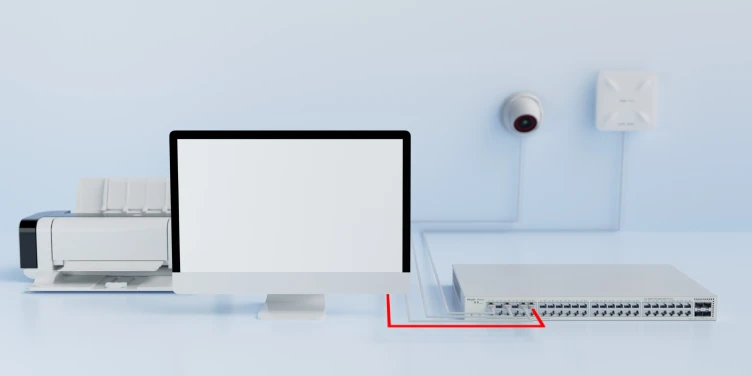

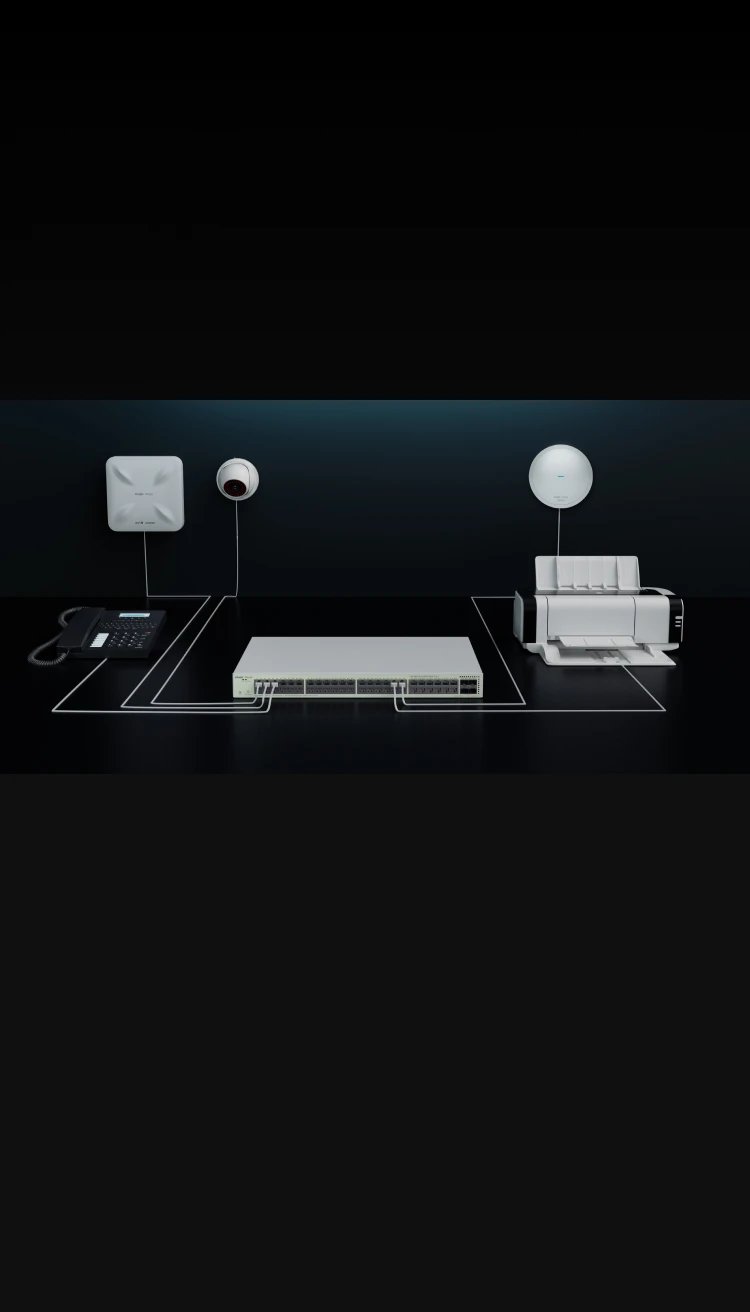

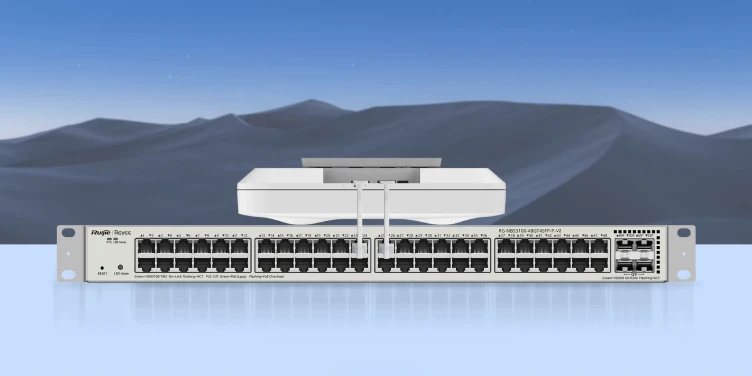

Sayısız PoE Uygulama Senaryosu

  • Performans

  • Özellikler

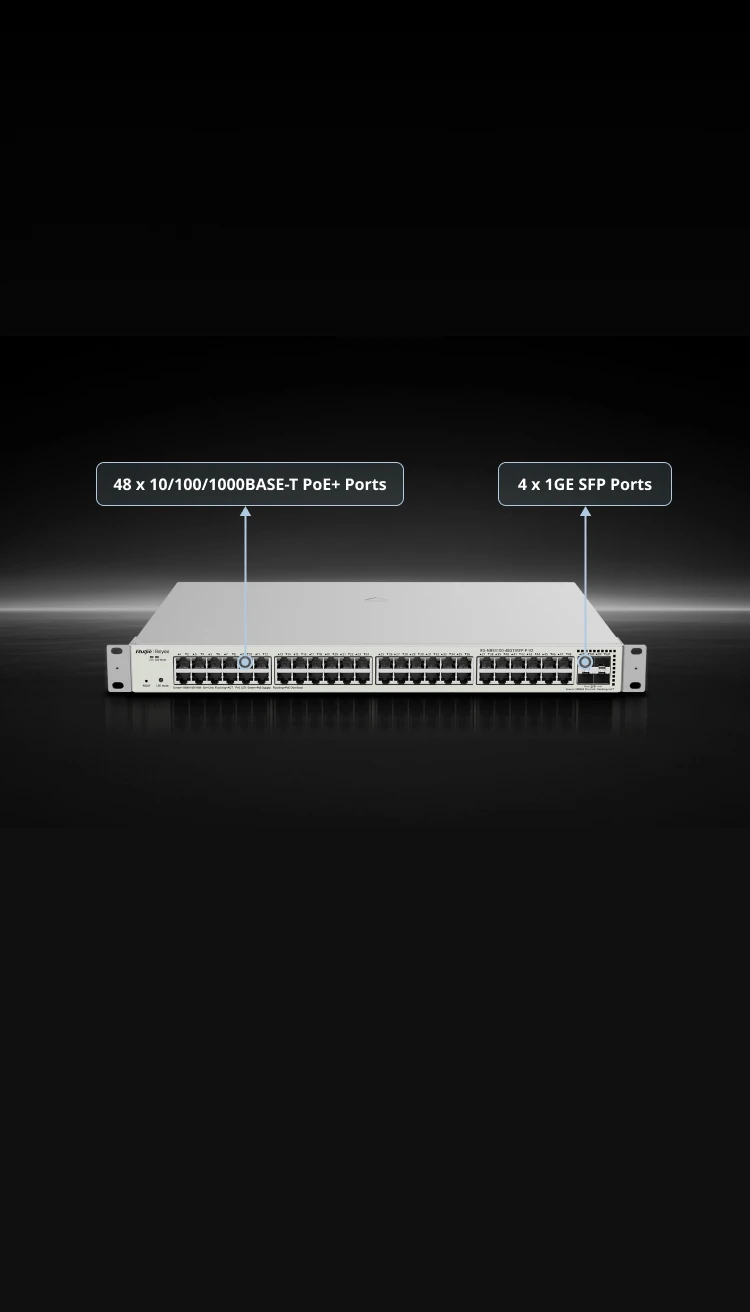

48 x 10/100/1000BASE-T PoE+ Portları

4 x 1GE SFP Portları

  • Switchleme Kapasitesi
    104 Gbps

  • İletim Hızı
    78 Mpps

  • 5 yıl
    Garanti

  • PWM Fanı
    Düşük Gürültü için
    Optimize Edildi

  • PoE Bütçesi
    370 W

  • Maks. 30 W
    her portta

  • Aşırı Gerilim Koruma
    6 KV

Kurumsal Sınıf Kalite, Yüksek Performansı Garanti Eder

  • Link Kümeleme

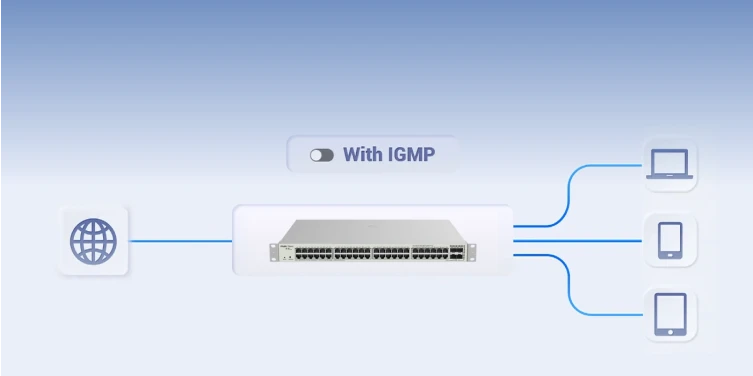

  • IGMP Snooping Özelliği

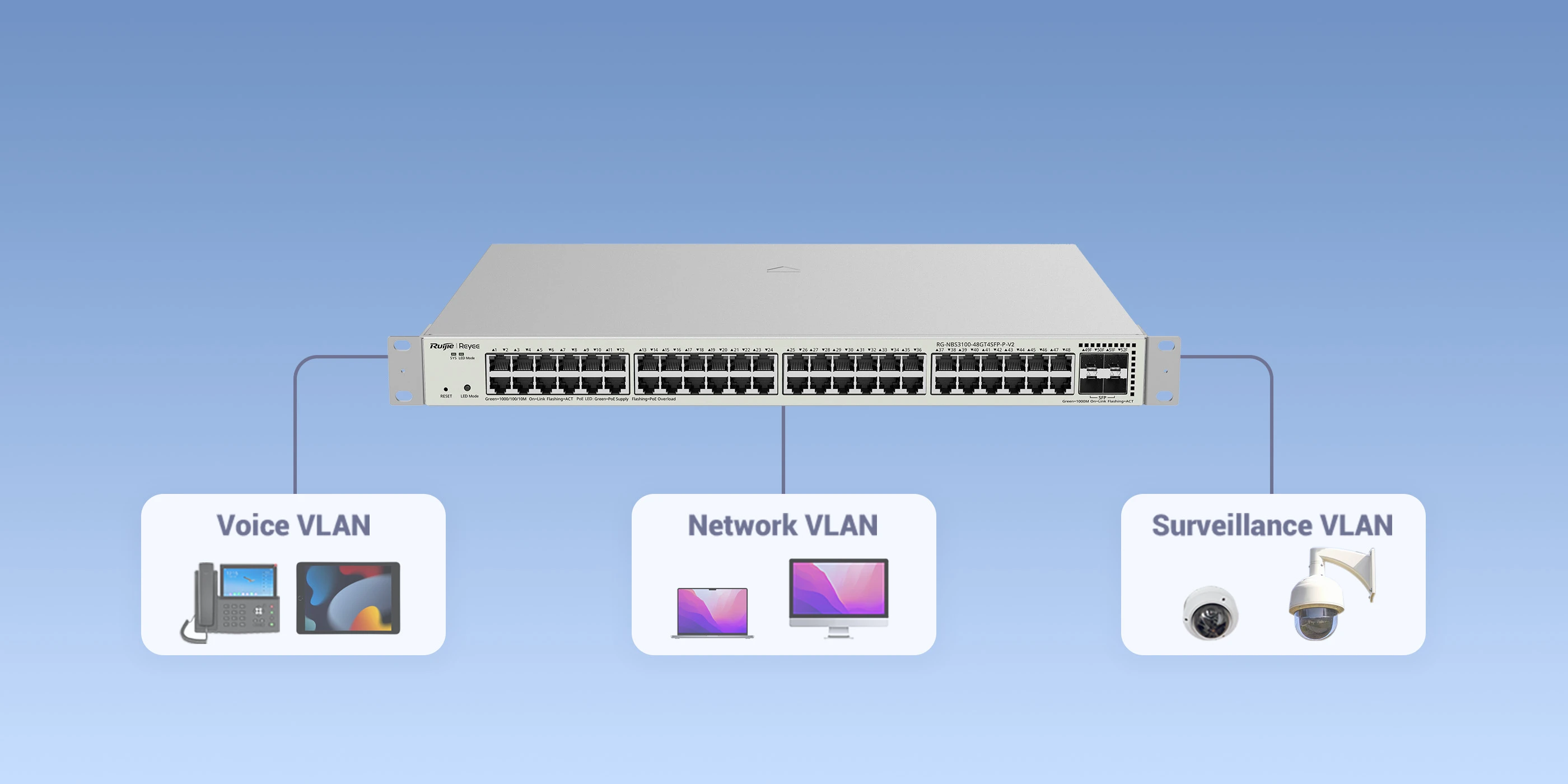

  • VLAN

Çoklu Güvenlik Politikaları Ağınızı Korur

  • Güvenlik

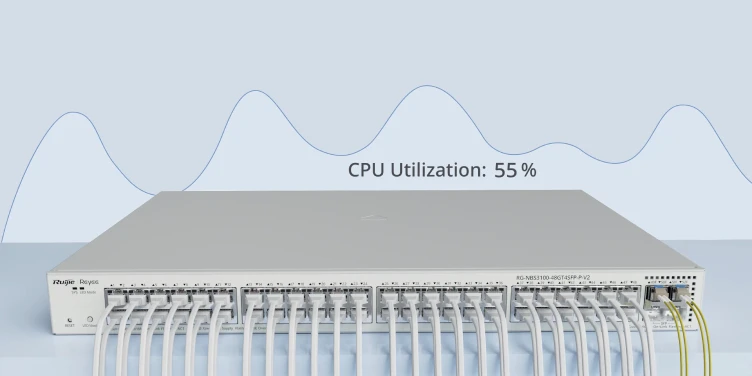

  • Kararlılık

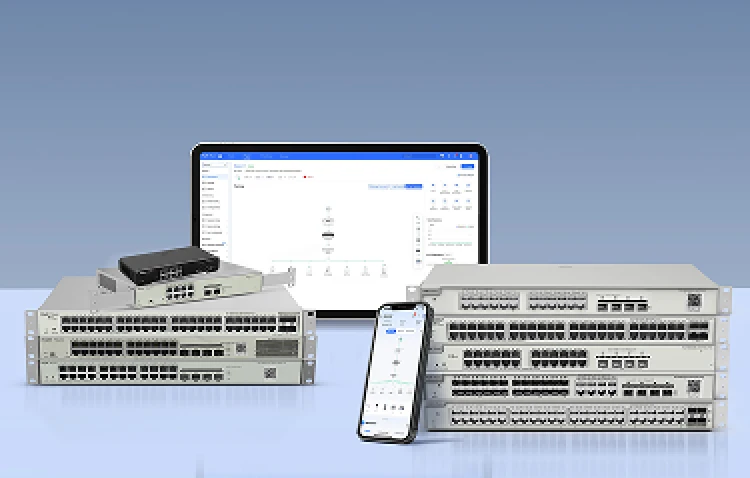

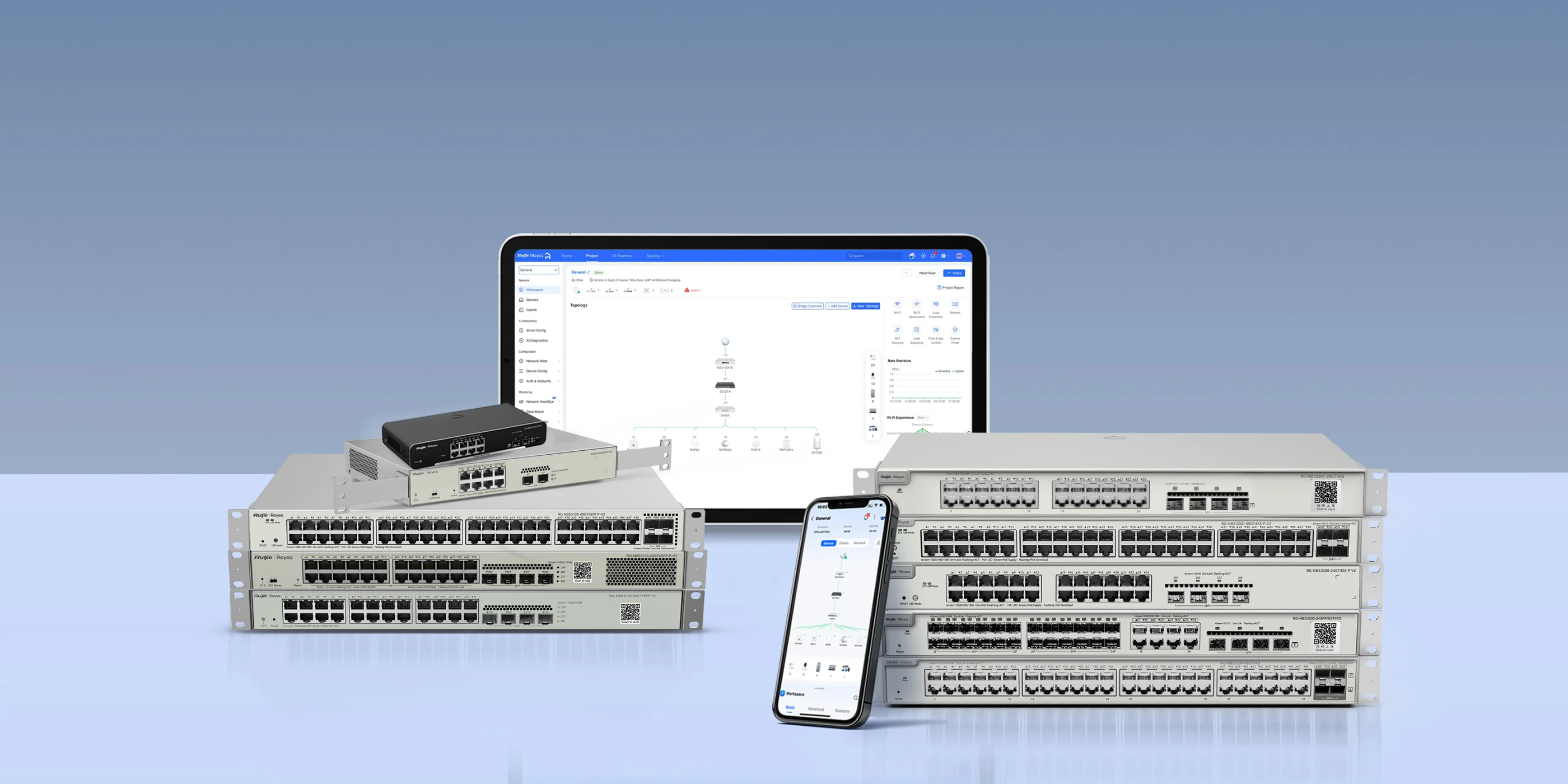

Ruijie Cloud: İşinizi Kolaylaştırır

  • Ruijie Cloud'da SON ve Sıfır Dokunma Sağlama Desteği
  • Ruijie Reyee Uygulamasında VLAN'ların yapılandırılması
  • Her zaman ve her yerde switch istatistiklerini izleme imkanı
  • Kolay bakım sayesinde sahada harcanacak zaman ve maliyet azalır

Key Specifications
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 5 years
Port Specifications
Total number of RJ45 ports
  • 48
Total number of optical ports
  • 4
Number of 1GE SFP ports
  • 4
Number of 10GE SFP+ ports
  • No
Number of 10/100BASE-T ports
  • No
Number of 10/100/1000BASE-T ports
  • 48
Number of 10/100/1000/2500BASE-T ports
  • No
Number of 100/1000/2.5G/5G/10GBASE-T ports
  • No
Power Supply and Consumption
Number of PoE Out ports
  • 48
Number of PoE/PoE+ Out ports
  • 48
Number of PoE/PoE+/PoE++ Out ports
  • No
PoE budget
  • 370 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 78 Mpps
Switching capacity
  • 104 Gbps(bit/s)
Environment and Reliability
MTBF
  • 400,000 hours
Operating temperature
  • 0°C to +50°C (32°F to 122°F)
Altitude
  • Operating altitude: 0 m to +5,000 m (0 ft. to +16,404.20 ft.)
    Storage altitude: 0 m to +5,000 m (0 ft. to +16,404.20 ft.)
Surge protection
  • Service port: ±6 kV for common mode
    Power connector: ±6 kV for both common mode and differential mode
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Interface
Jumbo frame length (MTU)
  • 9216 bytes (interface configuration mode)
Security
Port isolation
  • Yes
Broadcast storm control
  • Yes
