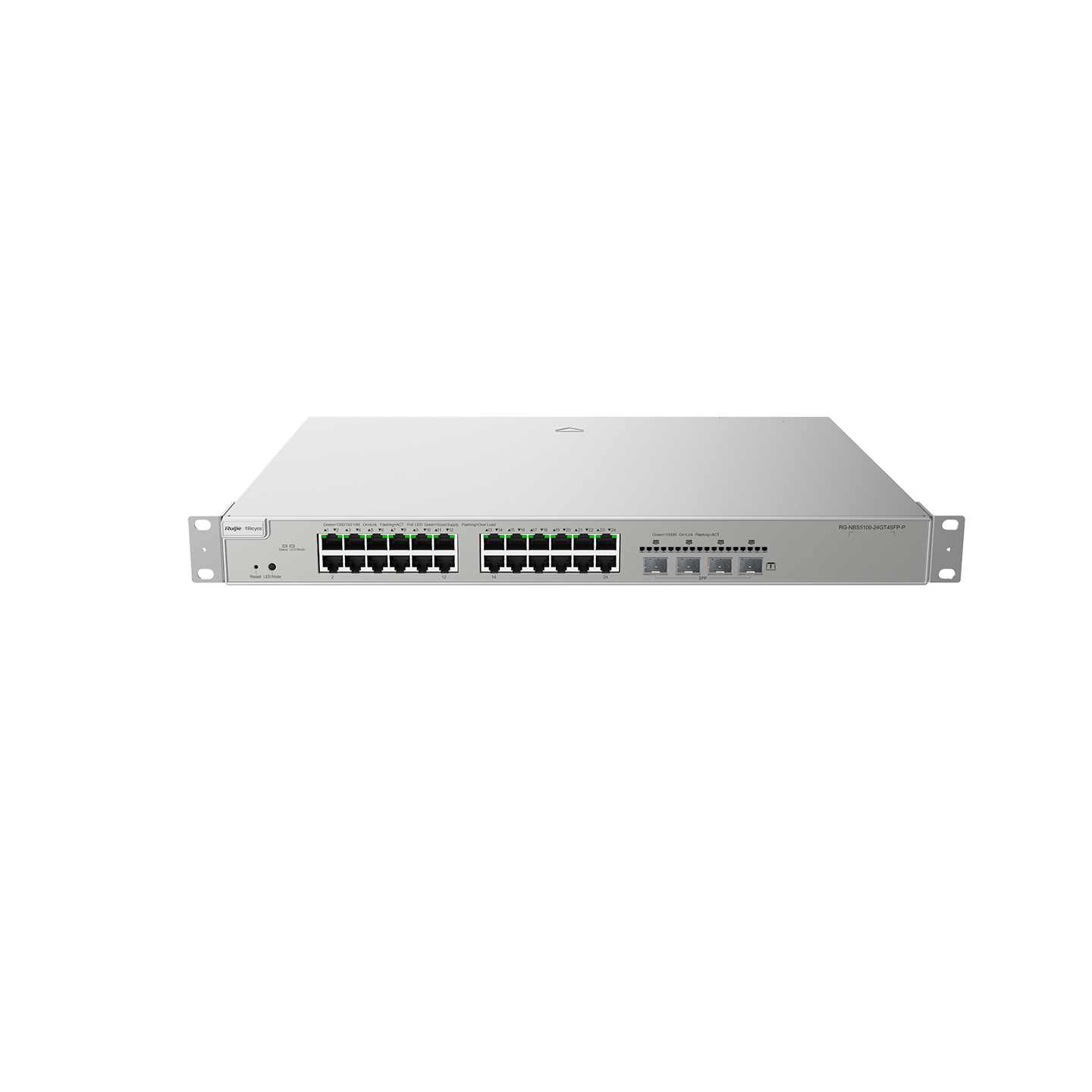

RG-NBS5200-24GT4XS-P - 2

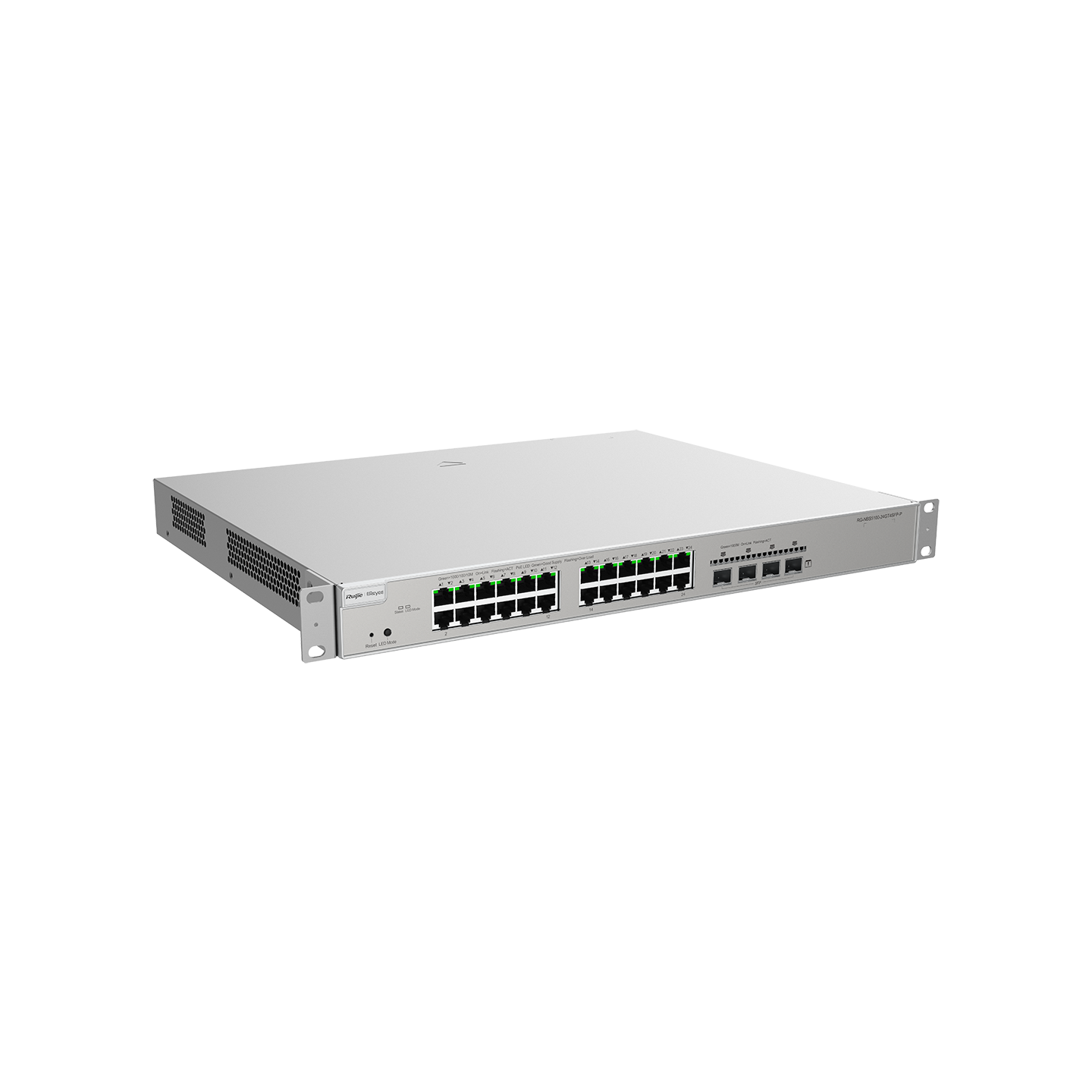

RG-NBS5200-24GT4XS-P - 3

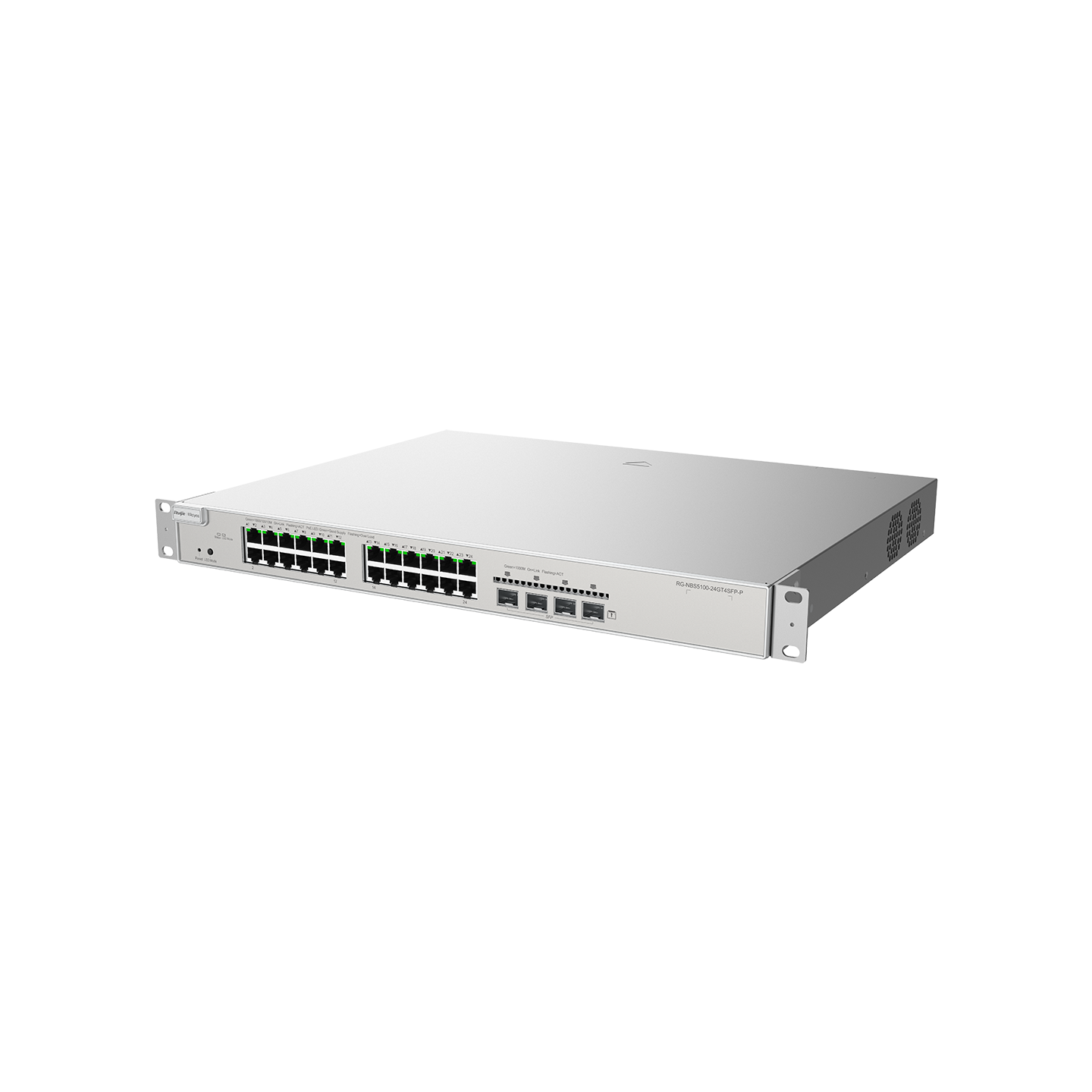

RG-NBS5200-24GT4XS-P - 4
RG-NBS5200-24GT4XS-P - 5
RG-NBS5200-24GT4XS-P - 6
RG-NBS5200-24GT4XS-P - 7

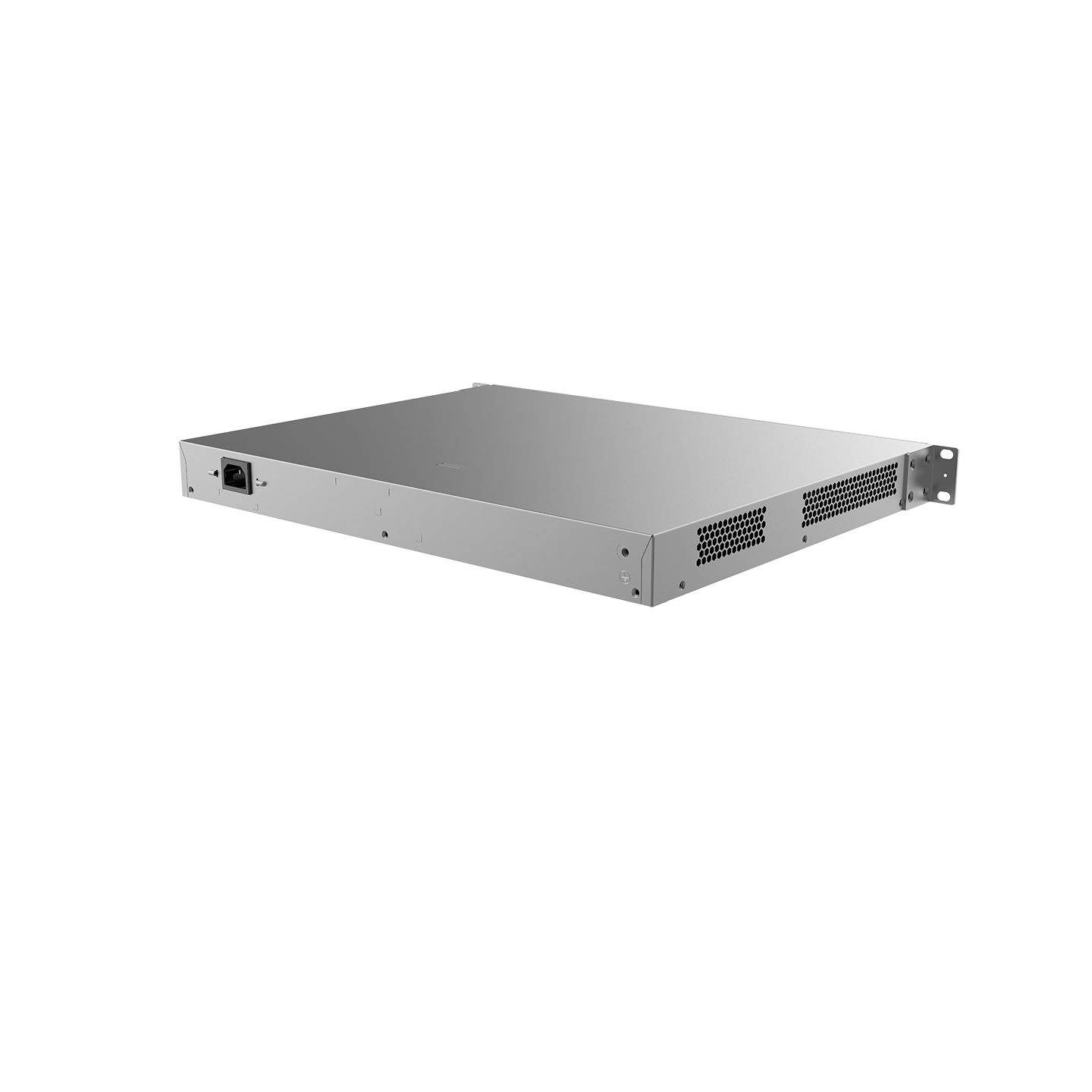

RG-NBS5200-24GT4XS-P - 8
RG-NBS5200-24GT4XS-P - 1
RG-NBS5200-24GT4XS-P - 2
RG-NBS5200-24GT4XS-P - 3
RG-NBS5200-24GT4XS-P - 4
RG-NBS5200-24GT4XS-P - 5
RG-NBS5200-24GT4XS-P - 6
RG-NBS5200-24GT4XS-P - 7
RG-NBS5200-24GT4XS-P - 8

RG-NBS5200-24GT4XS-P, 24-portlu Gigabit Layer 3 Anahtar, 4 SFP+ Uplink

Kurumsal, Konaklama, Fabrika, Eğitim, Perakende Satış, vb.

Models
RG-NBS5200-24GT4XS

24 Gigabit Portu, 4 SFP

 RG-NBS5200-24GT4XS-P

24 Gigabit Portu, 4 SFP

 RG-NBS5200-24SFP/8GT4XS

8 Gigabit Combo Portu, 24 SFP, 4 SFP

 RG-NBS5200-48GT4XS

48 Gigabit Portu, 4 SFP

 RG-NBS5200-48GT4XS-UP

48-portlu Gigabit Layer 3 Anahtar, 4 SFP+ Uplink

 RG-NBS5300-8MG2XS-UP

8 PoE++ Portuna, 2 SFP+ Uplink Portuna Sahip 10 Portlu Çoklu Gigabit Yönetilen Anahtar
Series
Sabit 10G Bağlantı Aktif Katman 3 (L3) Anahtarı Sabit 1G Bağlantı Aktif Katman 3 (L3) Anahtarı Şasi/Modüler Katman 3 (L3) Anahtarı
Datasheet Sales Enquiry
Add to Favorites
Highlight Features
  • 24-Port gigabit Layer 3 WEB yönetimli anahtar, 4 SFP+ uplink
  • Kurumsal Sınıf Kalite, Yüksek Performans
  • 6KV gerilim dalgalanma (surge) koruması, port hasarı olasılığını azaltır
  • Çoklu Güvenlik Politikaları İle Ağınızı Korur
  • Ömür Boyu Ücretsiz Ruijie Cloud
Sales Enquiry
Ana Teknik Özellikler
Portlar
24 x 10/100/1000Base-T portu, 4 SFP+ uplink
Katman türü
Layer 3
Anahtarlama kapasitesi
128 Gbps
İletim hızı
96 Mpps
MAC adresi tablosu
16000
Maksimum VLAN
4094
Fan
Tekli, Soldan Arkaya
Port darbe gerilimi (surge)
6 kV
Boyutlar (Genişlik x Derinlik x Yükseklik)
440 mm x 207,5 mm x 43,6 mm
Ağırlık (Ambalaj/paket dahil)
2,9 kg
MTBF
> 200.000
Garanti
5 Yıl
Features

RG-NBS5200-24GT4XS-P

24-port Gigabit Layer 3 Cloud Managed Switch, 4 x SFP Uplinks

  • Anahtarlama Kapasitesi
    128 Gbps

  • İletim Hızı
    96 Mpps

  • 5 Yıl
    Garanti

Bol Miktarda PoE Uygulama Senaryosu



  • PoE Bütçet
    370W

  • Her Bir Port Üzerinde
    Maksimum 30W

  • Surge Protection
    6KV

  • Performans
  • Özellikler
Kurumsal Sınıf Kalite Sayesinde Yüksek Performans
  • Link Aggregation
  • IGMP Müdahale Etme
  • VLAN
Çoklu Güvenlik Politikaları Ağınızı Korur
  • Güvenlik
  • Kararlılık
Cloud İşinizi Kolaylaştırır
  • SON, Cloud'a dokunmadan provizyonlama
  • Her zaman ve her yerde anahtar istatistiklerini izleme imkanı
  • Ruijie Cloud APP üzerinde VLAN'ların yapılandırılması
  • Kolay bakım, sahada harcanacak zaman ve maliyet tasarrufu











Comparison
10/100/1000Base-T portu
SFP (1G)
SFP+ (10G)
Katman türü
Anahtarlama kapasitesi
İletim hızı
MAC adresi tablosu
VLAN aralığı
Boyutlar (Genişlik x Derinlik x Yükseklik)
Ağırlık (Ambalaj/paket dahil)
Jumbo Frame (MTU)
Bağlantı Kümeleme Grubu (Link Aggregation Group - LAG)
ACL
STP/RSTP
Otomatik Hata Devre Dışı Bırakma Kurtarma (Auto Errdisable Recovery)
Ses (Voice) VLAN
LLDP/LLDP-MED
IGMP Snooping v1/v2
CPP
EEE
Güç kaynağı
Fan
Hava Akımı
Port darbe gerilimi (surge)
MTBF
Garanti
RG-NBS5200-24GT4XS-P
24
-
4
Layer 3
128 Gbps
96 Mpps
16000
4094
440 mm x 357.6 mm x 43.6 mm
4.5 kg
9216
16
1900
Sabit, 100 - 240V AC, 6A
2
Soldan/Sağdan Arkaya
6 kV
> 200.000
5 Yıl
RG-NBS5200-24GT4XS
24
-
4
Layer 3
128 Gbps
96 Mpps
16000
4094
440 mm x 207,5 mm x 43,6 mm
2,9 kg
9216
16
1900
Sabit, 100 - 240V AC, 1.5A
1
Soldan Arkaya
6 kV
> 200.000
5 Yıl
RG-NBS5100-24GT4SFP
24
4
-
Layer 3
56 Gbps
42 Mpps
16000
4094
440 mm x 207,5 mm x 43,6 mm
2,9 kg
9216
16
1900
Sabit, 100 - 240V AC, 1.5A
1
Soldan Arkaya
6 kV
> 200.000
5 Yıl
RG-NBS5100-48GT4SFP
48
4
-
Layer 3
104 Gbps
78 Mpps
16000
4094
440 mm x 267,5 mm x 43,6 mm
3,6 kg
9216
16
1900
Sabit, 100 - 240V AC, 2A
1
Soldan/Sağdan Arkaya
6 kV
> 200.000
5 Yıl
RG-NBS5200-24SFP/8GT4XS
8 combo
24
4
Layer 3
128 Gbps
96 Mpps
16000
4094
440 mm x 267,5 mm x 43,6 mm
3,35 kg
9216
16
1900
Sabit, 100 - 240V AC, 2A
1
Soldan Arkaya
6 kV
> 200.000
5 Yıl
RG-NBS5200-48GT4XS
48
-
4
Layer 3
216 Gbps
132 Mpps
16000
4094
440 mm x 267,5 mm x 43,6 mm
3,6 kg
9216
16
1900
Sabit, 100 - 240V AC, 2A
1
Soldan/Sağdan Arkaya
6 kV
> 200.000
5 Yıl
Resources All Resources
Learn about Products or Solutions
Installation
Software and Configuration
FAQ Ask a Question
Tips: Product information and performance will be affected by upgrade iteration, specific environment and other factors, so FAQ content is for reference only. For further information, please contact online support.
RG-NBS5100 ve RG-NBS5200 serilerinde Layer 3 anahtar ne ifade eder?

Layer 3; anahtarın statik yönlendirme protokolünü ve DHCP sunucusu özelliğini desteklediği anlamına gelir.



2
RG-NBS5100 ve RG-NBS5200 serisi anahtarlar DHCP sunucusunu destekler mi?

Evet. Desteklenir, tüm bu anahtarlarca terminallere IP adresi atanabilir.



3
Does RG-NBS5100&NBS5200 series switch support VCS?

Only RG-NBS5200 series switch support VCS.
