RG-ES207GS-AC-OD, AC Girişli 7 Portlu Gigabit Dış Mekan Ağ Anahtarı

CCTV, Parklar, Otoyollar vb.

Models
RG-ES228GS-LP

24 x 10/100/1000BASE-T PoE+ Portları, 2 x 10/100/1000BASE-T Portları, 2 x 1GE SFP Portları, 250 W

 RG-ES228GS-P-V2

24 Adet 10/100/1000BASE-T PoE+ Portu, 2 Adet 10/100/1000BASE-T Portu, 2 Adet 1GE SFP Portu

 RG-ES211GS-LP

8 Adet 10/100/1000BASE-T PoE+ Portu, 2 Adet 10/100/1000BASE-T Portu, 1 Adet 1GE Portu

 RG-ES207GS-P

4 Adet 10/100/1000BASE-T PoE+ Portu, 2 Adet 10/100/1000BASE-T Portu, 1 Adet 1GE SFP Portu

 RG-ES207GS-LP

4 Adet 10/100/1000BASE-T PoE+ Portu, 2 Adet 10/100/1000BASE-T Portu, 1 Adet 1GE SFP Portu

 RG-ES207GS-HP

2 Adet 10/100/1000BASE-T PoE++ Portu, 2 Adet 10/100/1000BASE-T PoE+ Portu, 2 Adet 1GE Portu, 1 Adet

RG-ES220GS-P-V2

16 Adet 10/100/1000BASE-T PoE+ Portu, 2 Adet 10/100/1000BASE-T Portu, 2 Adet 1GE SFP Portu

 RG-ES211GS-P

8 Adet 10/100/1000BASE-T PoE+ Portu, 2 Adet 10/100/1000BASE-T Portu, 1 Adet 1GE SFP Portu

 RG-ES207GS-AC-OD

7 Portlu Dış Mekan Ağ Anahtarı, 5 x 1 G RJ45 Portu, 2 x SFP Uplink Portu

 RG-ES207GS-PI-OD

7 Portlu Dış Mekan Ağ Anahtarı, 5 x 1 G RJ45 Portu, 2 x SFP Uplink Portu

 RG-ES206MG-P

4 x 10/100/1000/2500BASE-T PoE+ Portu, 1 x 10/100/2500BASE-T Portu, 1 x 10GE SFP+ Portu, 70 W PoE Bu

 RG-ES209MG-P

8 x 10/100/1000/2500BASE-T PoE+ Portu, 1 x 10GE SFP+ Portu, 130 W PoE Budget

 RG-ES205GC-P

5 Gigabit Portu, 4 PoE , 54W

 RG-ES220GS-LP

16 x 10/100/1000BASE-T PoE+ Portları, 2 x 10/100 /1000BASE-T Portları, 2 x 1GE SFP Portları, 130 W

 RG-ES220GS-P

16 Gigabit PoE+ ports,2 SFP,250W

 RG-ES228GS-P

24 Gigabit PoE+ ports,2 SFP,370W

 RG-ES210GS-P

10 Gigabit Ports, 8 PoE+, 120W

 RG-ES206GS-P

4 PoE+ Portuna, 1 Kombo Porta sahip 6 Portlu Gigabit Yönetilen Anahtar

 RG-ES209GC-P

9 Gigabit Portu, 8 PoE , 120W
Series
PoE Modeli PoE Olmayan Model
Sales Enquiry
Add to Favorites
Highlight Features
  • ERPS için 2 adet SFP Portu
  • Hepsi Bir Arada Dış Mekan Ağ Anahtarı, 4'ü 1 Arada Entegrasyon
  • Üst Düzey Hava Koşullarına Dayanıklılık: IP65 Derecesi, ±8 kV PoE Aşırı Gerilim Koruması
  • Kamera Sorun Giderme
  • Kesintisiz PoE Güç Kaynağı
Sales Enquiry
Özellikler

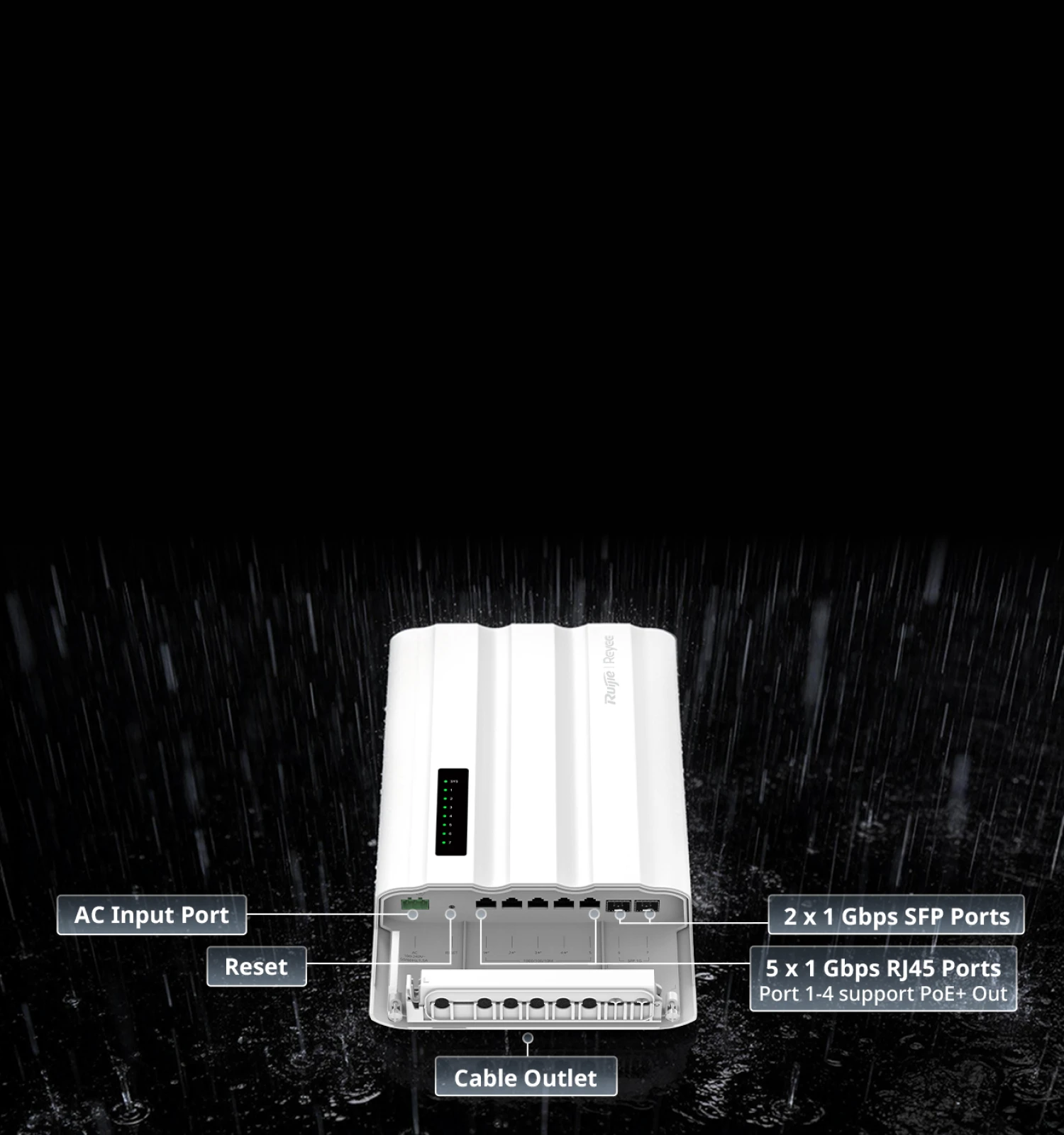

RG-ES207GS-AC-OD

AC Girişli 7 Portlu Gigabit Dış Mekan Ağ Anahtarı

  • AC Girişi

  • PoE Kapasitesi
    60W

  • ERPS

  • 3 Yıl Garanti

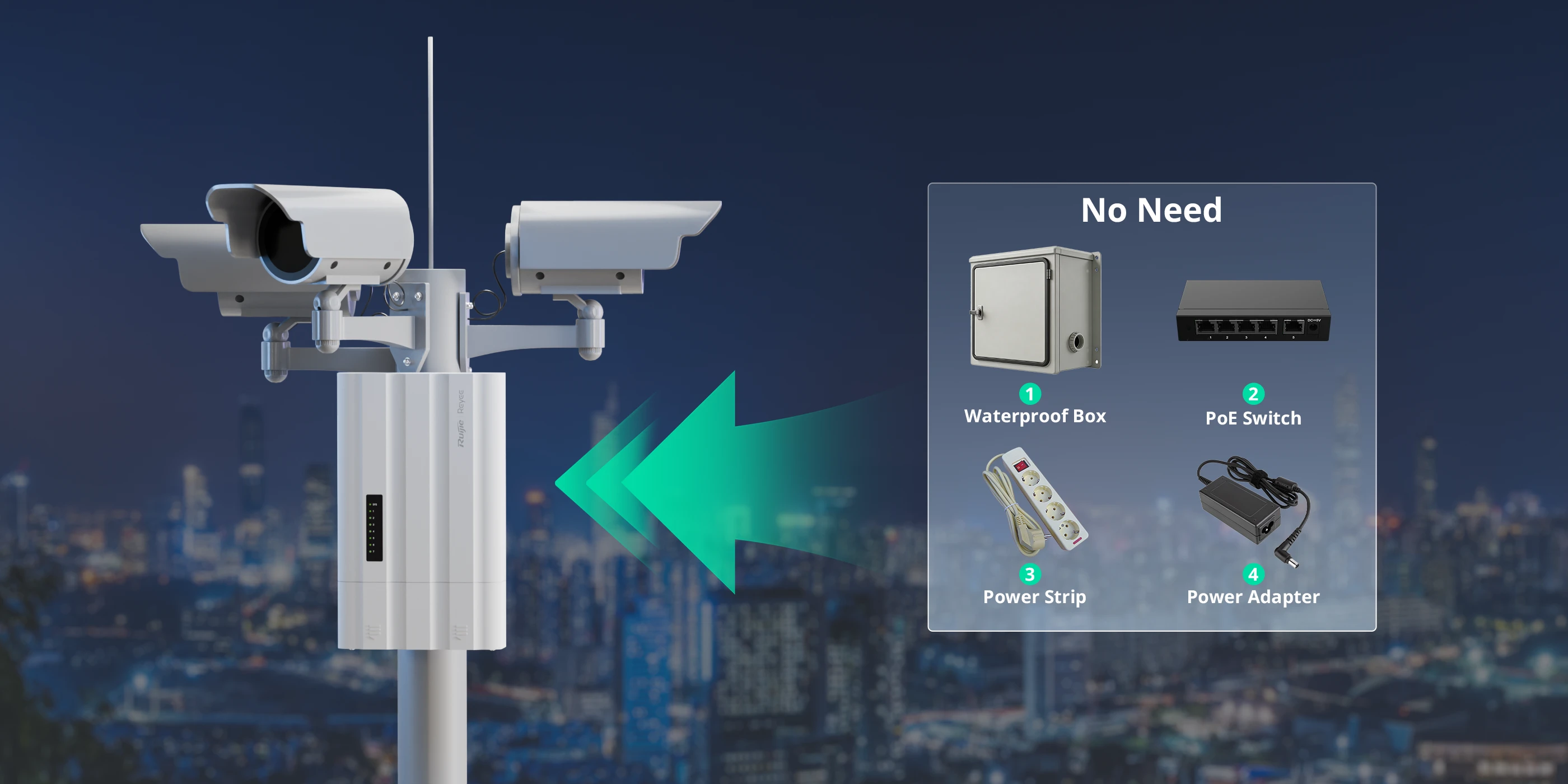

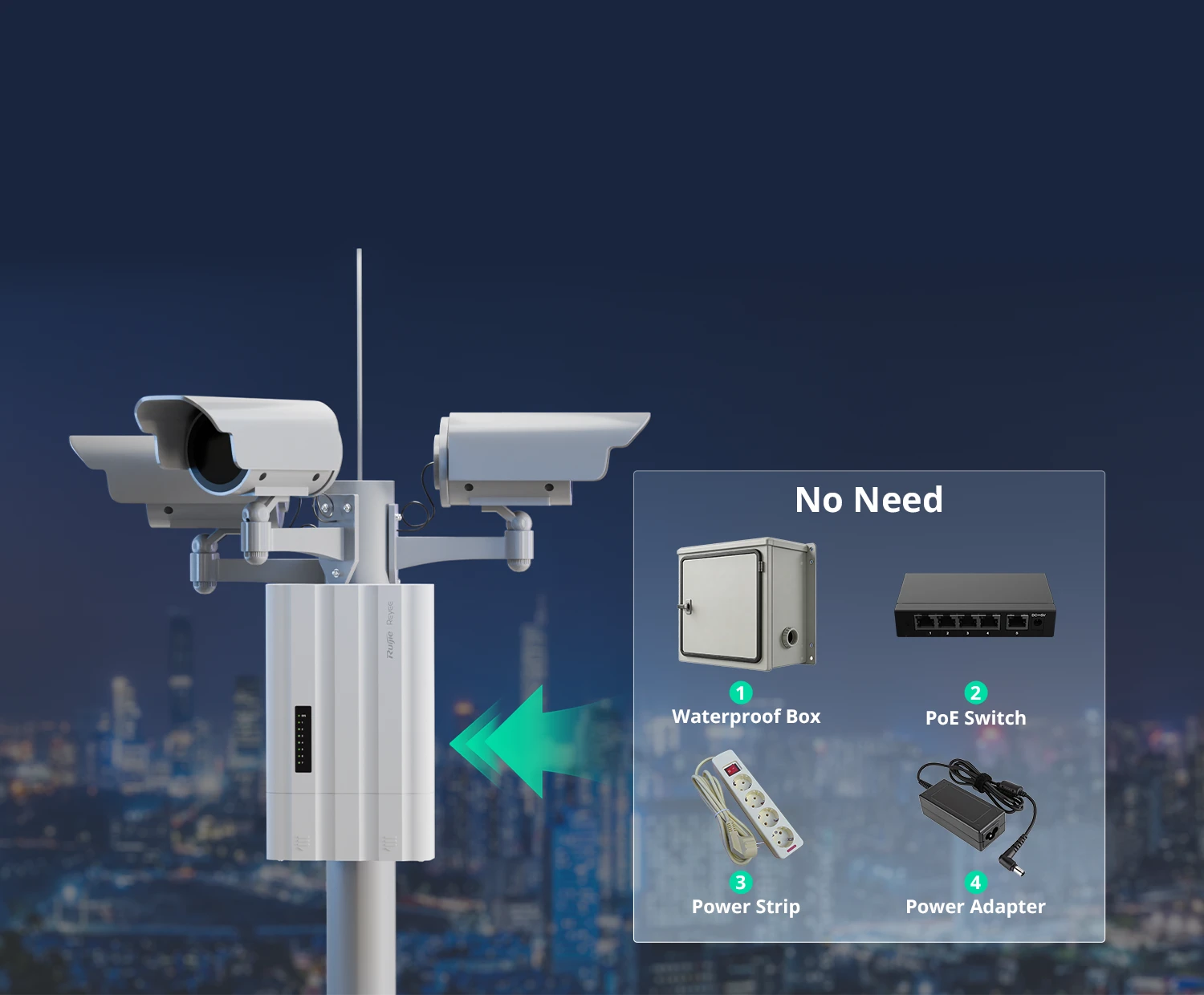

Hepsi Bir Arada

Dört Cihazı Tek Bir Cihazda Birleştirin

Yüksek Su Geçirmezlik Seviyesi

Zorlu Ortamlar için Dış Mekan Kullanımına Uygun Özellikler

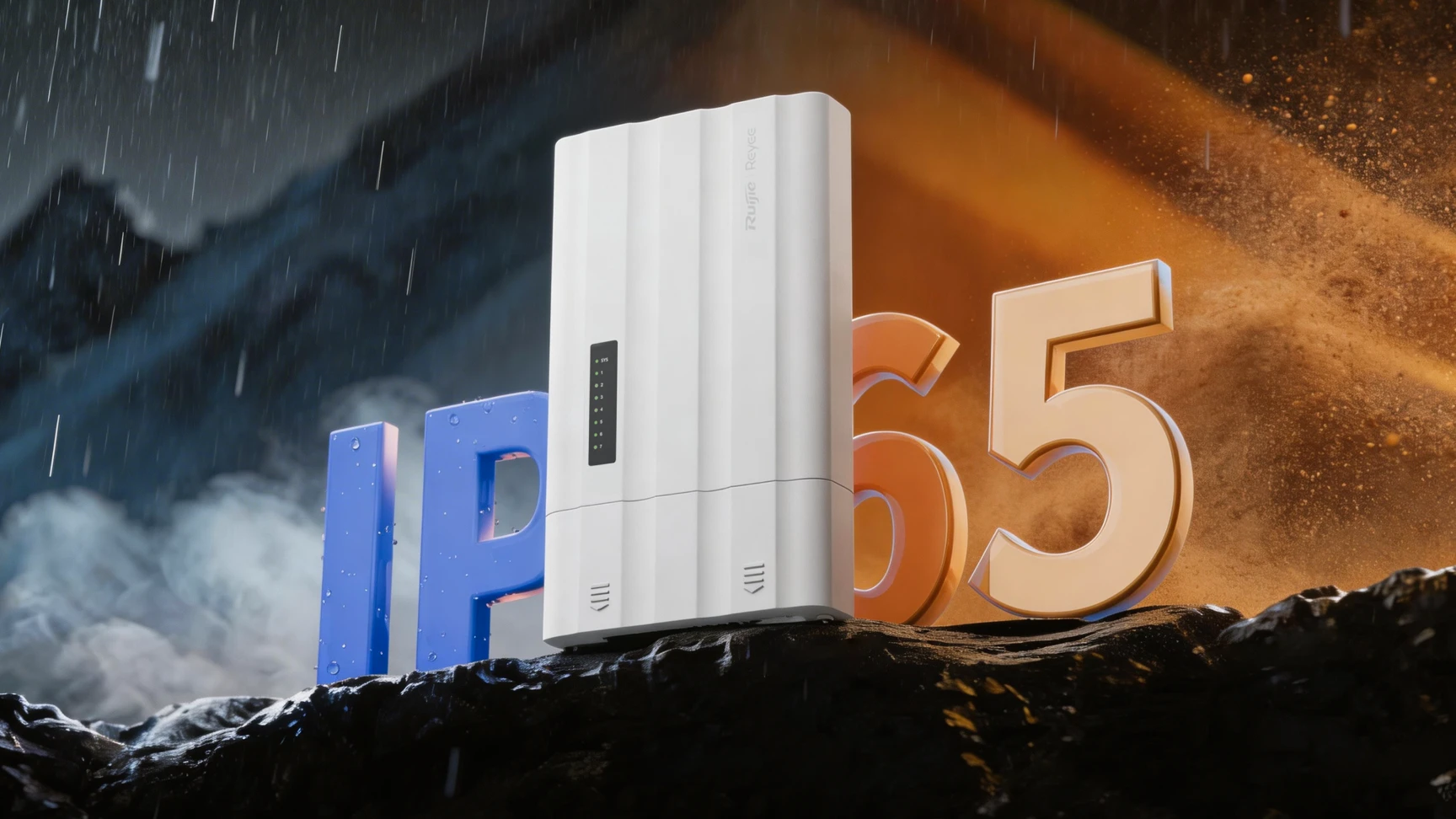

  • IP65

    Tamamen Toz Geçirmez, Su Püskürtmesine Dayanıklı

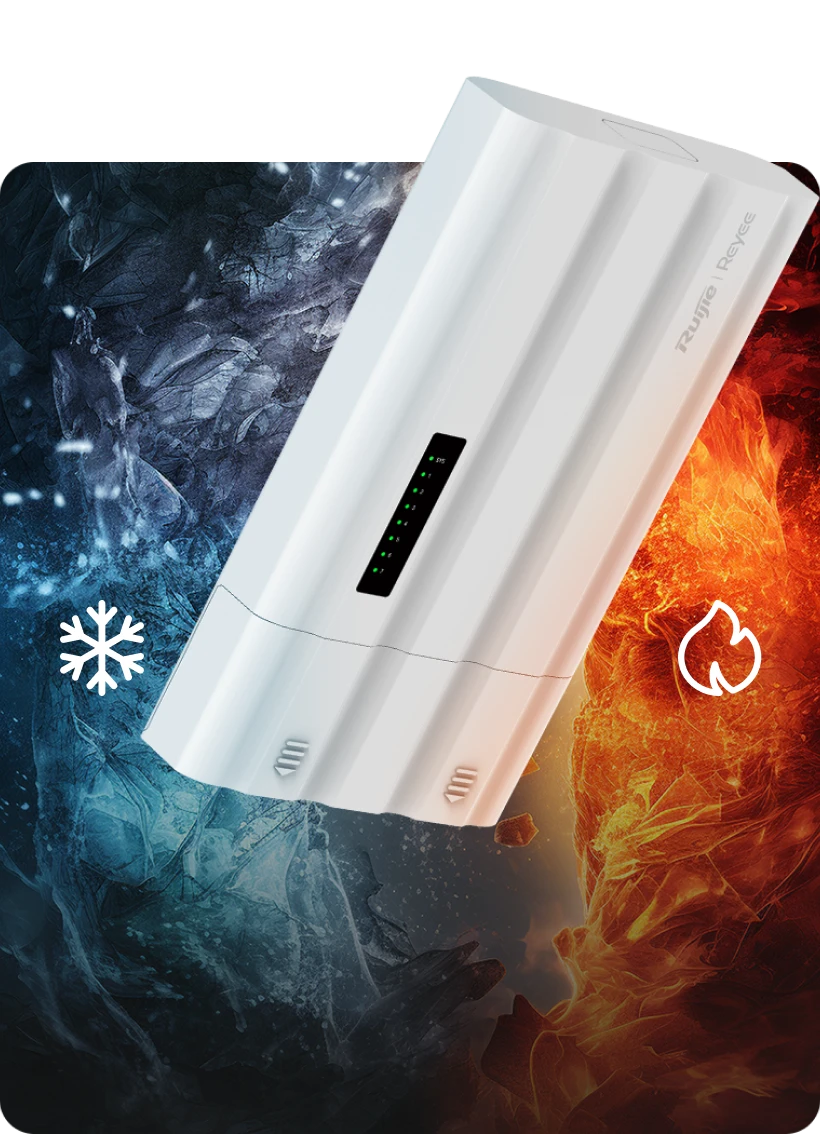

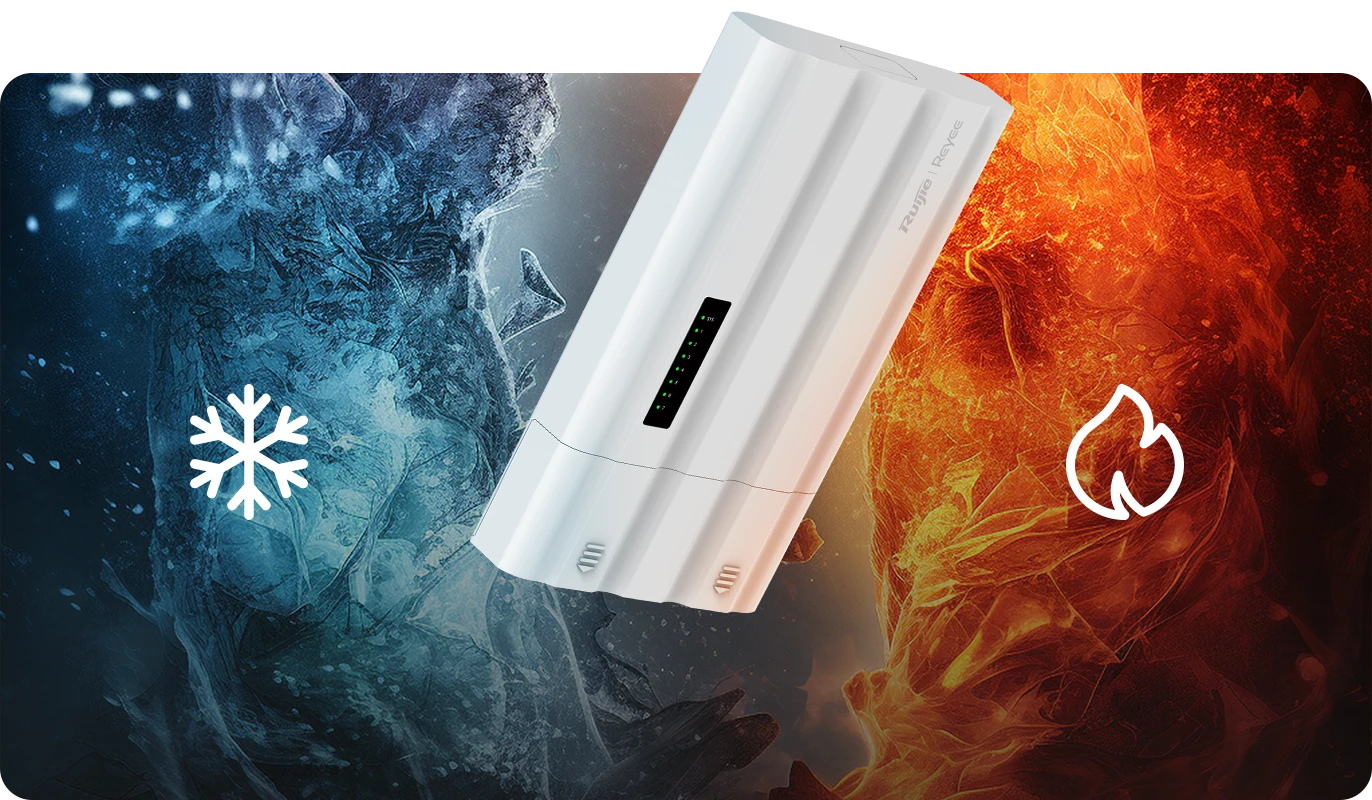

  • -30 °C ila 65 °C (-22 °F ila 149 °F)

    -30 °C ile 65 °C arasında Geniş Sıcaklık Aralığı

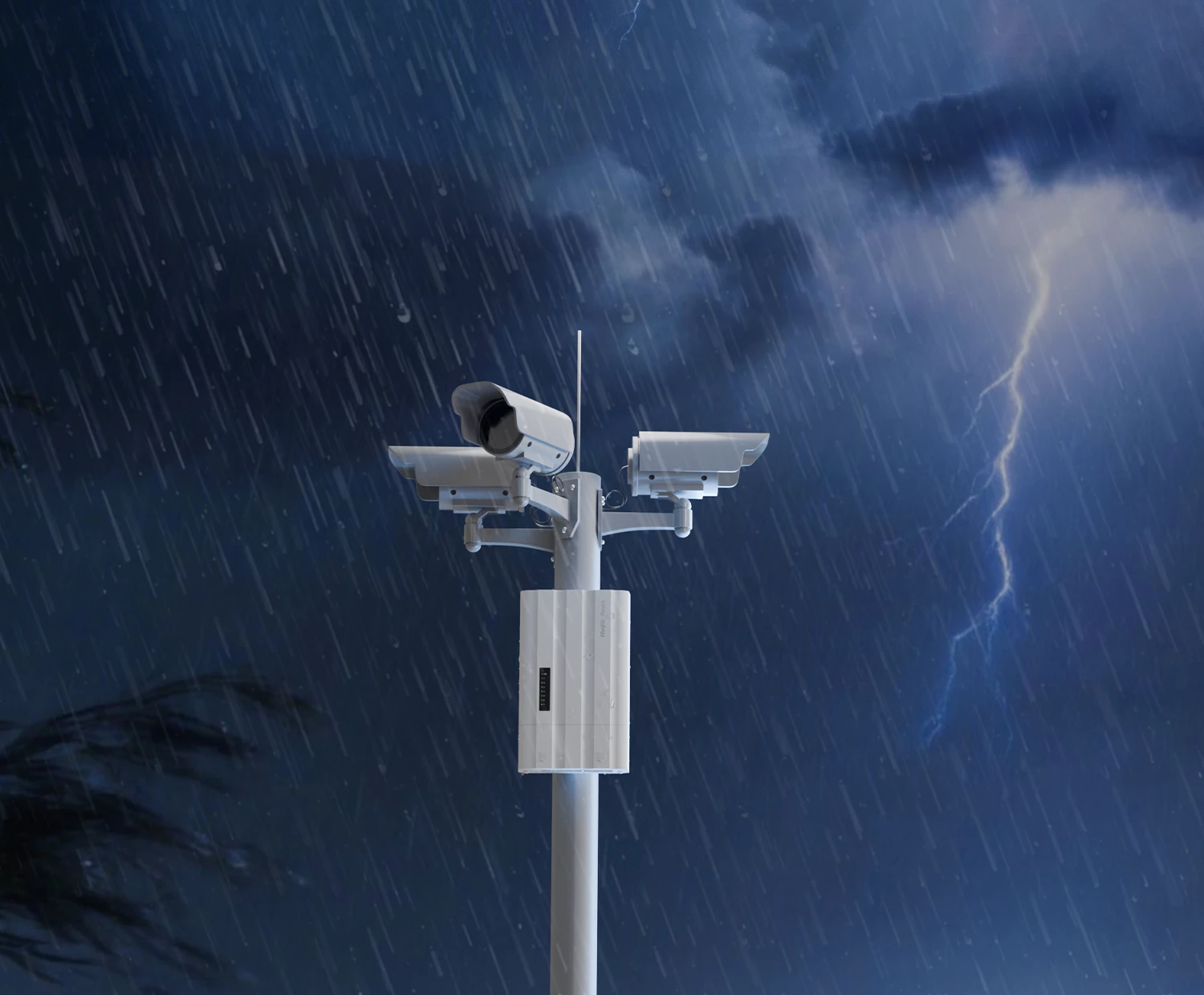

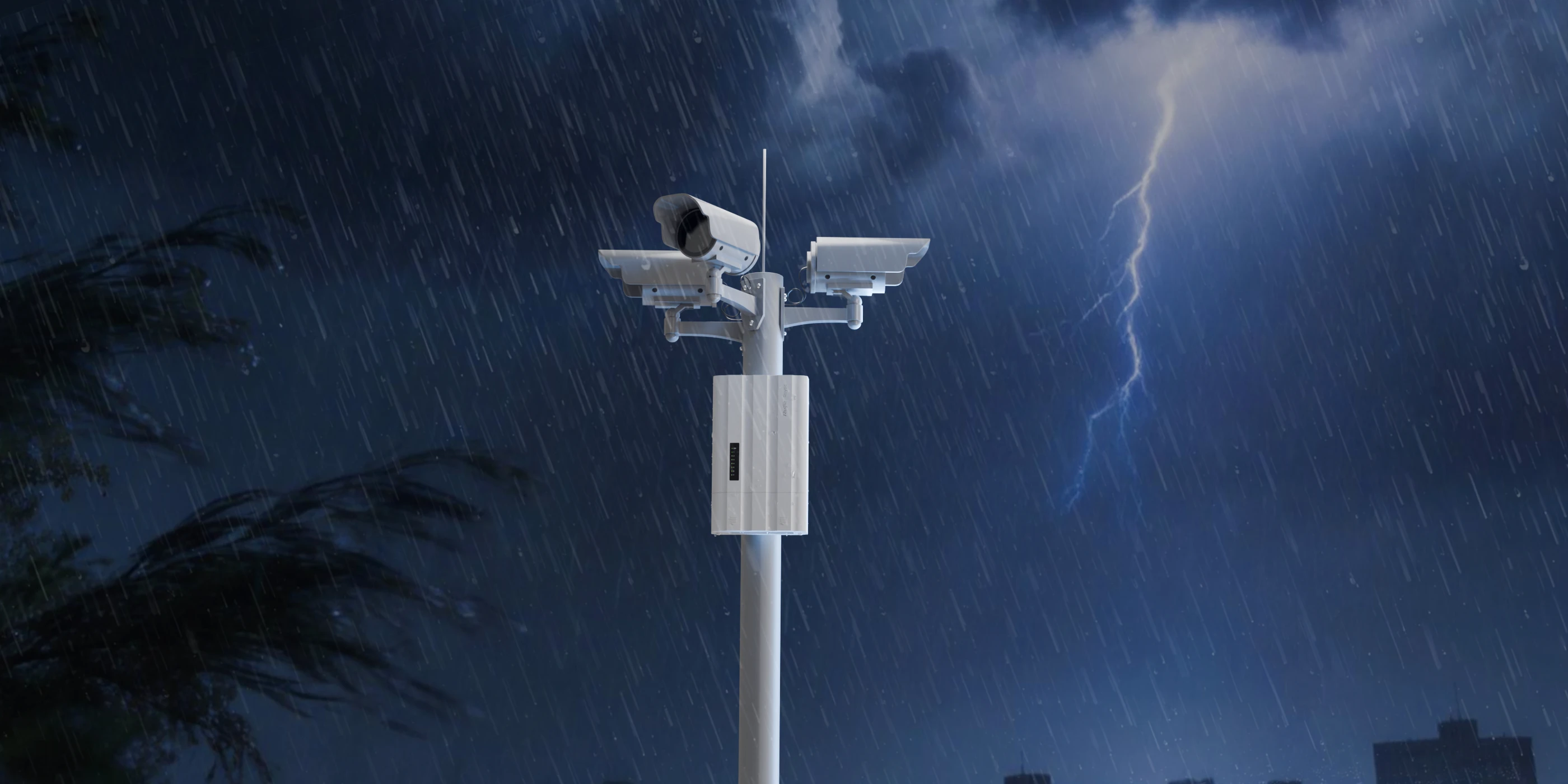

PoE Aşırı Gerilim Koruması: ±8 kV

Ağ Kararlılığı için Güvenilir Kalkan

Esnek Bağlantı

  • ERPS

  • Kablosuz

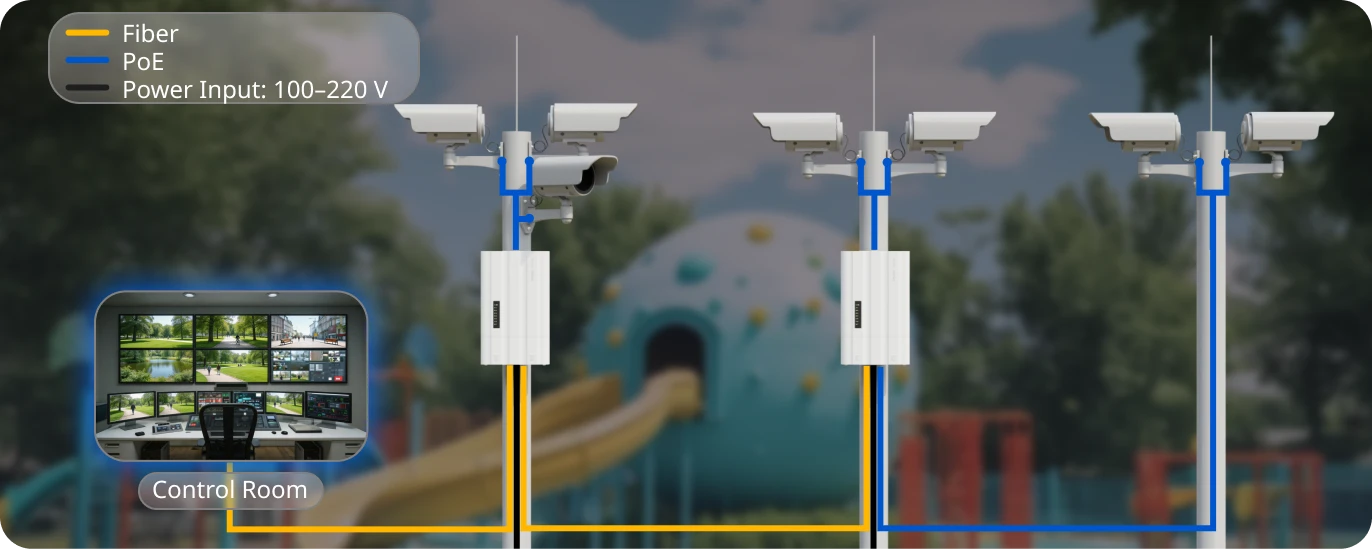

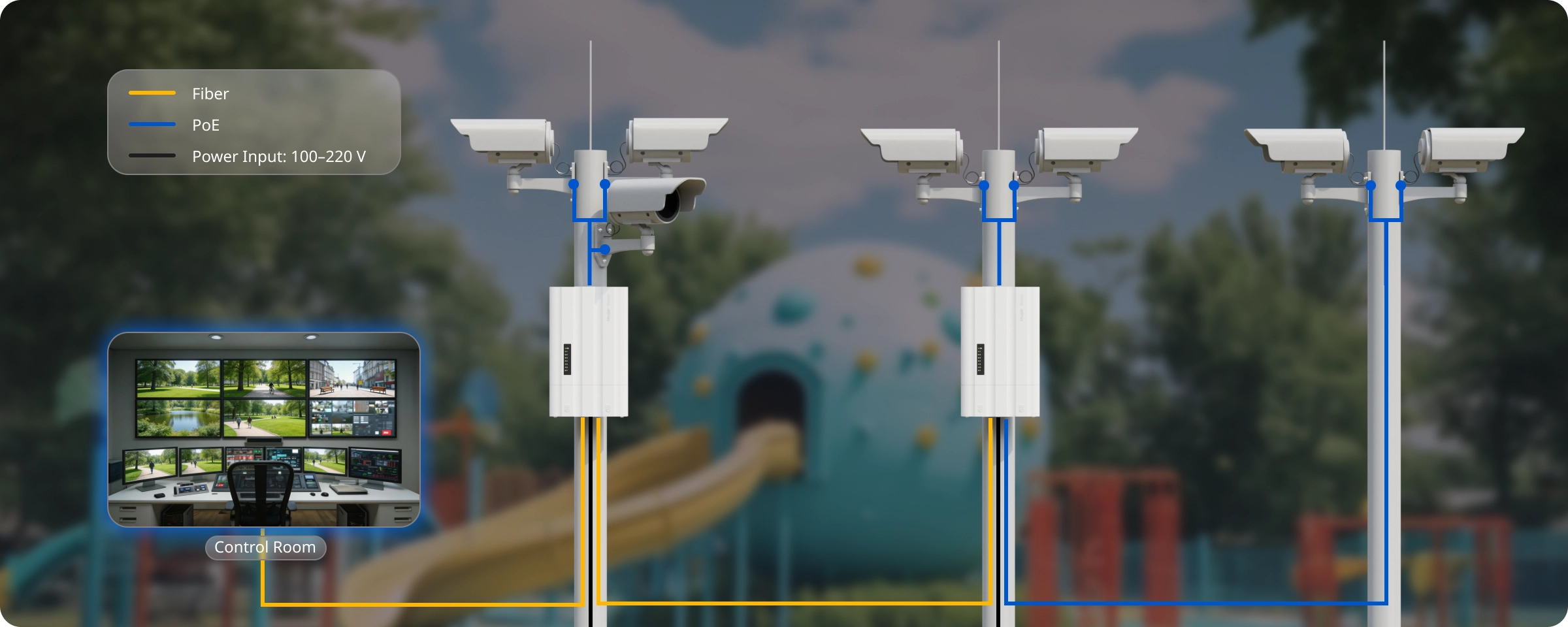

Fiber Optik Altyapıya Uygun Dış Mekan Ortamları için ERPS

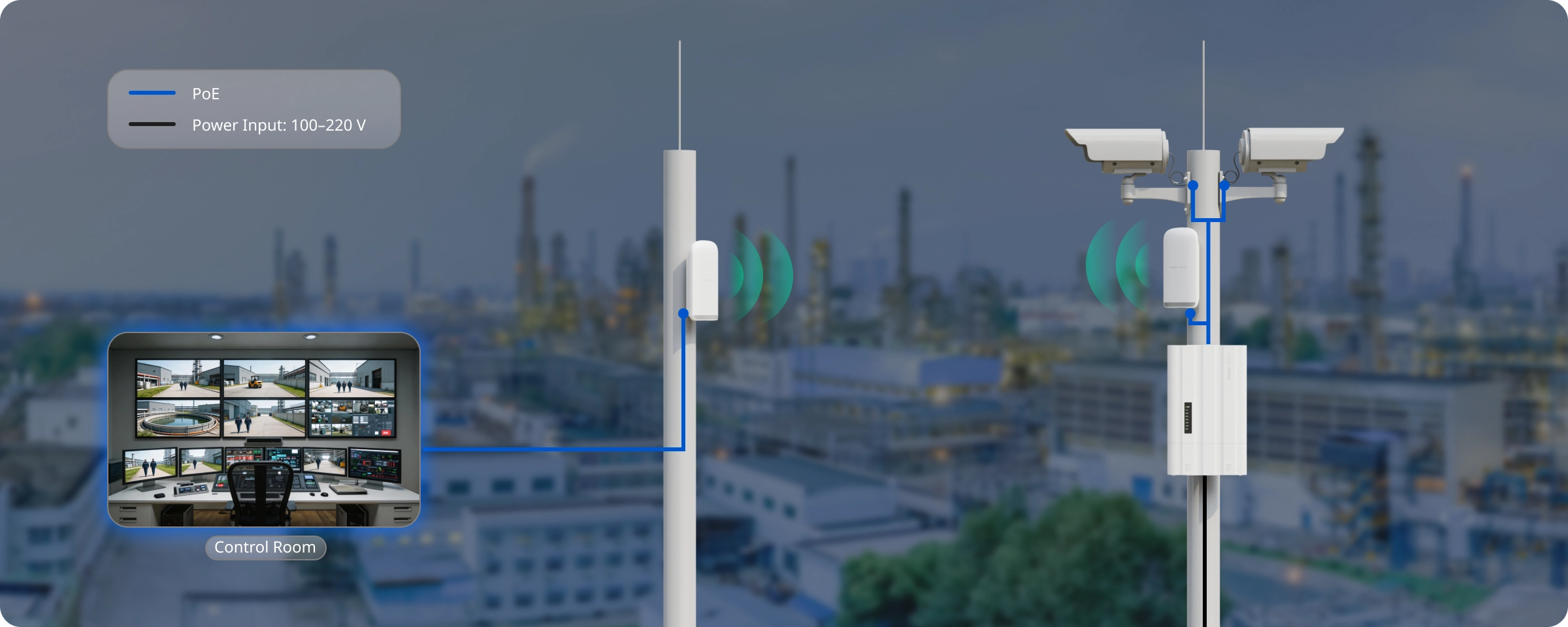

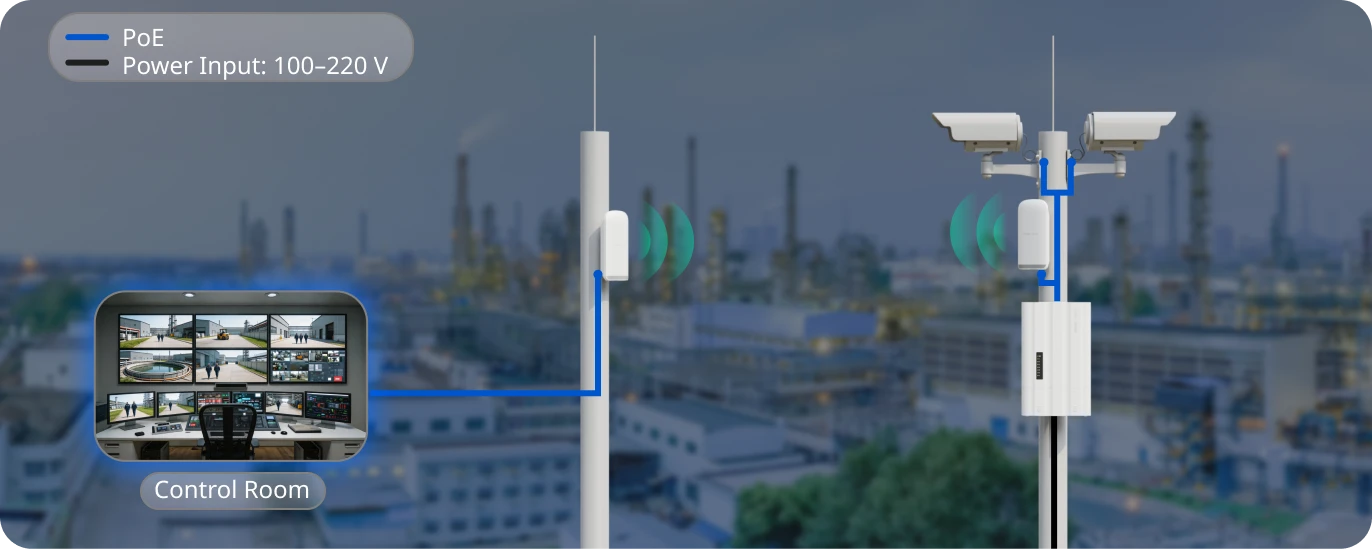

Fiber Optik Olmayan Dış Mekan Ortamları İçin Kablosuz Bağlantı

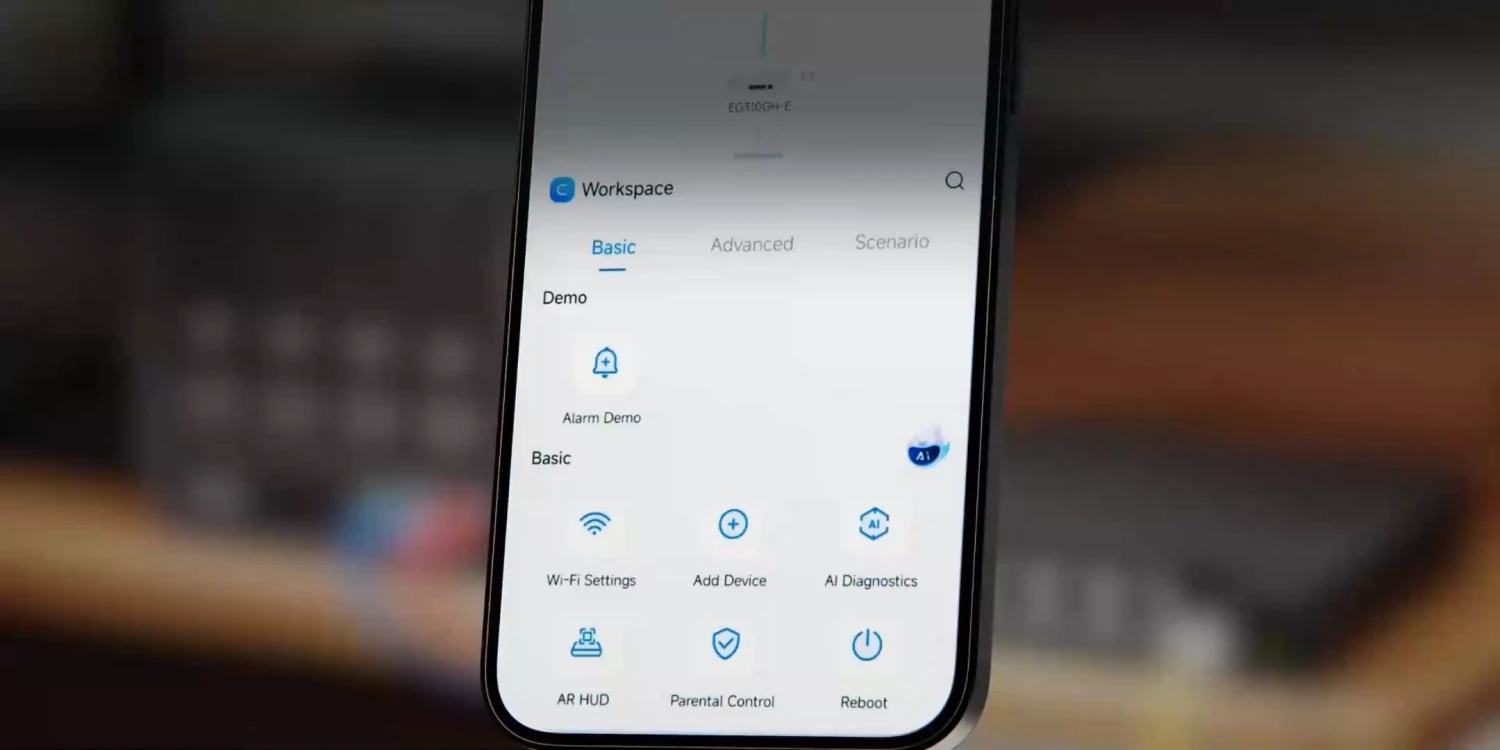

Bulut Teknolojisi İşinizi Kolaylaştırır

Önemli Spesifikasyonlar
Product Information
Product Category
Product Category
  • Layer 2
Hardware Specifications
Product Information
Warranty
  • 3 years

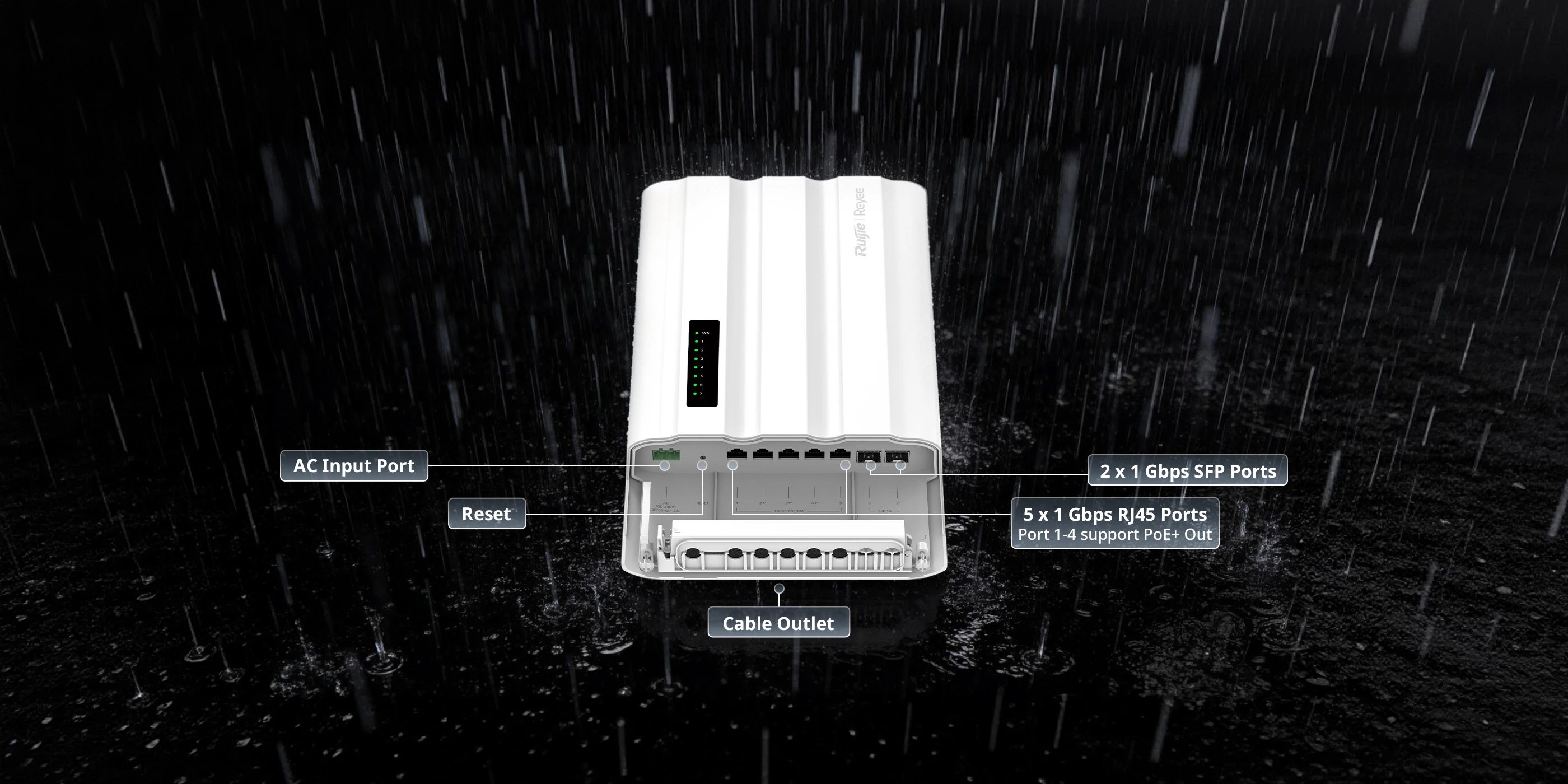

Port Specifications
Total number of RJ45 ports
  • 5
Total number of optical ports
  • 2
Number of 1GE SFP ports
  • 2
Number of 10/100/1000BASE-T ports
  • 5
Power Supply and Consumption
Number of PoE Out ports
  • 4
Number of PoE/PoE+ Out ports
  • 4
PoE budget
  • 60 W
PoE power pins
  • 1–2 (+), 3–6 (-)
System Specifications
Forwarding rate
  • 10.41 Mpps
Switching capacity
  • 14 Gbps(bit/s)
Environment and Reliability
Operating temperature
  • –30°C to +65°C (–22°F to 149°F)
Software Specifications
Basic Configurations
PoE watchdog
  • Yes
Security
Port isolation
  • Yes
